If you're PathSpot HandScanner is already installed, and a Wall Extender needs to be added, follow the directions below:

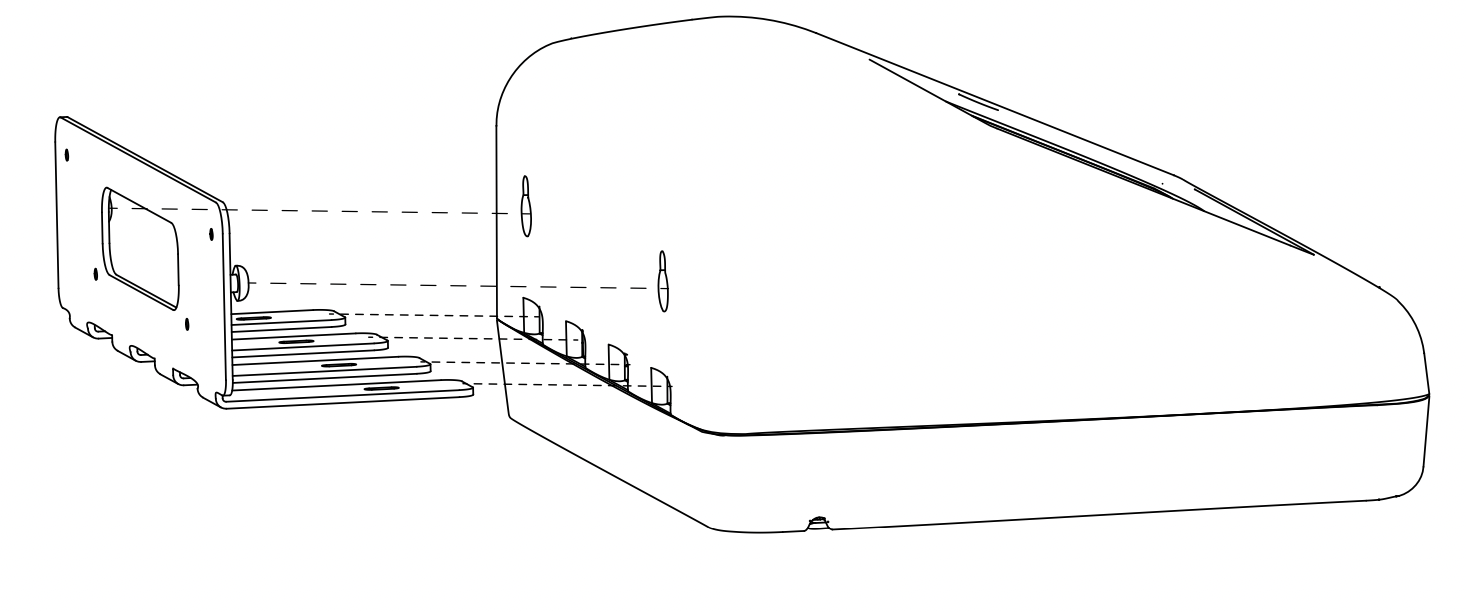

1. Remove the PathSpot HandScanner from the wall bracket.
Remove the four screws under the scanner affixing the bracket. Lift the scanner up, and slide it out, removing the scanner from the wall
2. Remove the bracket.
Unscrew the bracket from the wall. At this point, nothing should be screwed into your wall.

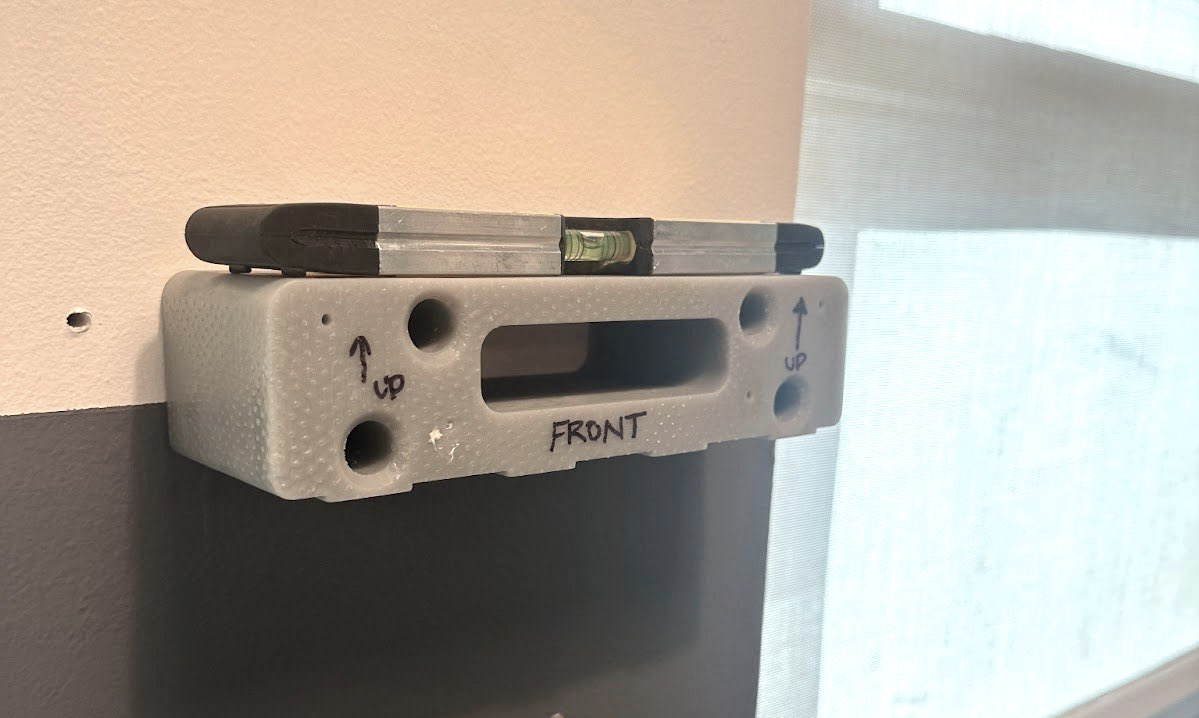

3. Installing the Extender
Using the 4 longer screws included. install the extender into the wall. If the wall is tile, or drywall, it’s recommended to use wall anchors to mount the extender (Included). Use the larger recessed holes for these screws

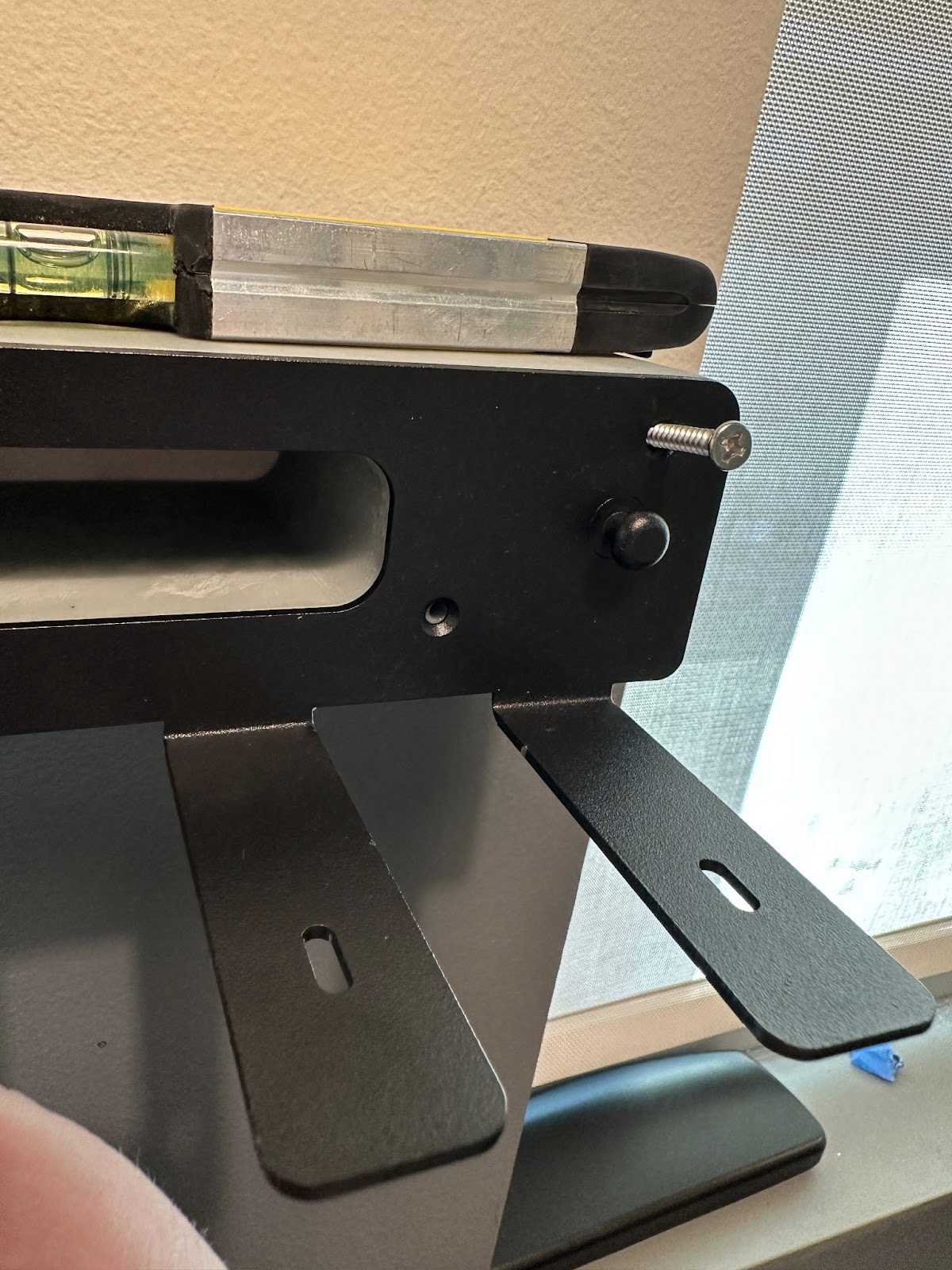

4. Mount the Scanner Bracket:
There are 4 pre-drilled holes on the extender for you to mount the bracket on. No anchors required. Use the 4 smaller screws for this.
5. Mount the Scanner.
Slide the scanner back onto the bracket and plug in. The PathSpot HandScanner will boot back up and rejoin your network automatically.
