How do I get alerts about temperature abnormalities?
When configuring alerts, you can decide when and how you want to get alerted. Our system can send alerts through Text, Email or Whatsapp Alerts.
You can also get alerts right on your PathSpot HandScanner. Just reach out to our PathSpot team and we can configure alerts or a corrective action to go off on your HandScanner.
How do I monitor the current temperature across locations?
To monitor temperatures across locations you must have access to the PathSpot.App Sensor Overview page. After an account have been created for you, just follow these steps:
- Navigate to : https://pathspot.app/#/sensors-overview
- Enter your login details if you are not logged in already
- Wait for your sensors to load
- Use the filters at the top to select the location you want to see sensor temperature for.

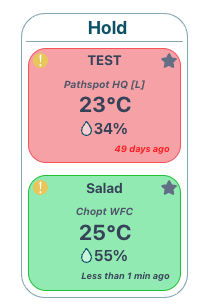

Some key identifiers for the dashboard are:
- Red cards indicate the sensor is out of range.
- Alerting icon indicates the sensor has an active alert.
- Green cards indicate a sensor is in range.
- Text at the bottom right will let you know the last time we received a reading from that sensor. Sensors offline for more than an hour indicate a connection issue.
- The star at the top right will allow you to âstarâ your sensor and bubble it up to the top outfits category so you can easily monitor.
How do I view historical temperatures?
Open the Web App: https://pathspot.app/#/sensors-overview
Click on any one of the sensor squares
A graph will show up allowing you to monitor and view temperature swings over time:
Do our temperature offerings (particularly the LoRaWAN sensors) come with technical documentation from the manufacture that validate their level of detection, accuracy, and thresholds?
The PathSpot Temperature and Humidity sensors aim to improve temperature collection and help businesses log and document their risk mitigation strategies. Our LoRa WAN sensors include a built in SHT20 Temperature and Humidity sensor and an external probe which serves as an additional
temperature sensor.
Specifications:
Certifications: FCC/CE RED/LoRaWAN /RoHS/TELEC
Storage Capacity: 3,200 humidity, temperature and battery data points
Advertising Interval: 20 min default (5 min MIN)
Battery Life at default: ~10 years â 2400mAh non chargeable
Max transmission (no obstruction): 3-5 km
Frequency Bands: US915
Protocol: LoRaWAN Class A protocol
Recommended Storage Temperature: -10ÂșC ~ 45ÂșC
Built In Sensor:
Operating Temperature: -40ÂșC ~ +80ÂșC
Temperature Precision: ~0.3ÂșC
Humidity Detection Range: 0~99.9%RH (no Dew)
Humidity Accuracy: ~3%RH
External Probe Sensor:
Operating Temperature: -55ÂșC ~ +125ÂșC
Temperature Precision: ~0.5ÂșC (-10ÂșC ~ +85ÂșC) and ~2ÂșC (-55ÂșC ~ +125ÂșC)
Applications:
Food Service HACCP
Cold Storage
Warm Storage
Logistics
Supply Chain
Warehouse
Battery Power Consumption:
| Sensor Setup | Idle Consumption (uA) | Transmitting Consumption Max (mA) | Transmission Frequency | Battery Life |
| LHT65 (No external sensor) | 3 | 130 | 20 min | ~10 years |
| LHT65 (No external sensor) | 3 | 130 | 10 min | ~6 years |
| LHT65 (No external sensor) | 3 | 130 | 5 min | ~3 years |
| LHT65 (No external sensor) | 3 | 130 | 1 min | ~1.5 year |
| LHT65 + Temp Sensor | 4 | 130 | 20 min | ~8 years |
| LHT65 + Temp Sensor | 4 | 130 | 10 min | ~ 5 years |
| LHT65 + Temp Sensor | 4 | 130 | 5 min | ~2 years |
| LHT65 + Temp Sensor | 4 | 130 | 1 min | ~1 year |
Manufacturers Data Sheets
https://www.dropbox.com/sh/una19zsni308dme/AACOKp6J2RF5TMlKWT5zU3RTa?dl=0
